Flat Plate Solar Water Heater
High Efficiency Heat Absorption
Multiple Tank Capacities (120L – 300L)
Suitable for Both Flat & Slope Roofs
Smart, Eco-Friendly Water Heating Solution
for Residential and Commercial Use
Product Highlights
Product Overview
Technical Specifications Application Scenarios

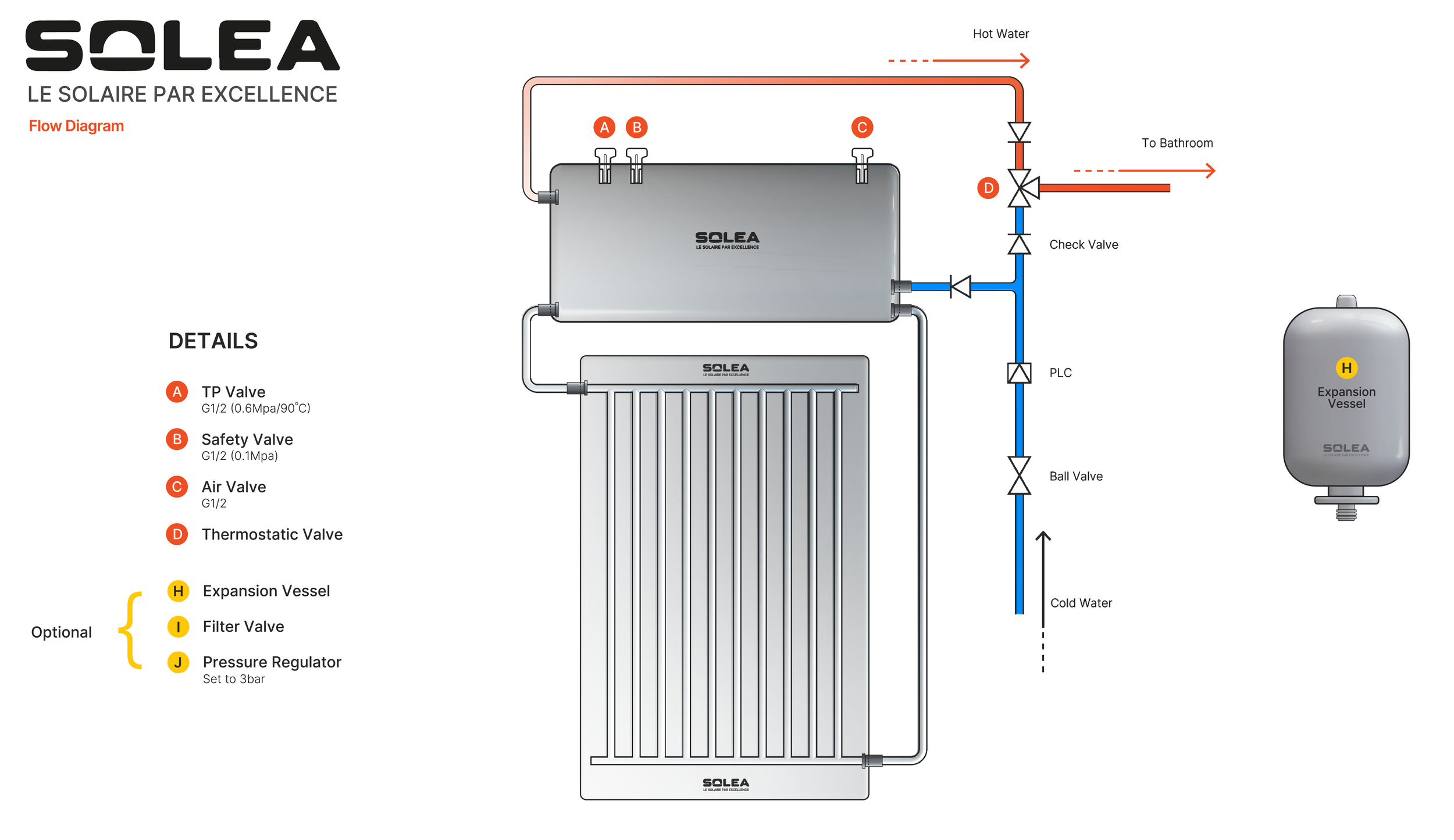

Safety Valve Logic Diagram
System Flow Diagram
Tank Cutaway Diagram

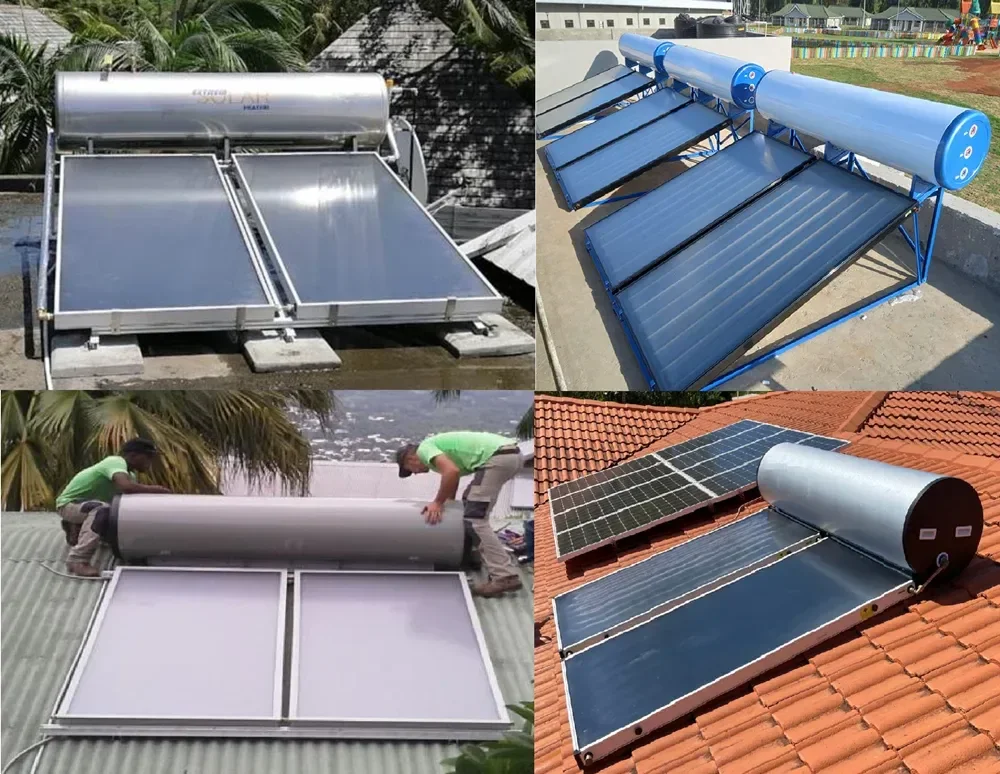

Flat Roof Installation Slanted Roof Installation
The Flat Plate Solar Water Heater combines a high-performance solar collector with a pressurized or low-pressure tank, delivering reliable hot water in all climates. Its enamel-coated or stainless-steel inner tank ensures durability, while the flat plate collector provides high output even in low light. Versatile and easy to install, it features modular collectors, a durable glass cover for impact resistance, and supports anti-freeze use in cold climates. Made from eco-friendly, recyclable materials, it is ideal for residential, villa, hotel, and small commercial applications.
Enamel-coated steel or stainless steel tanks
Flat plate or Cu/Al absorber with oxide film collectors
Tempered low-iron safety glass with ≥91% transmittance
Polyurethane foam insulation with 50 mm thickness
Suitable for flat and sloped roofs installations
Water or anti-freeze liquid - flexible operating fluids
More than 15 years of service line under normal conditions
| Model | FPS / SWH-200 (E) | FPS / SWH-250 (E) | FPS / SWH-300 (E) |
|---|---|---|---|
| Tank Capacity (L) | 200 | 250 | 300 |
| Tank Dimensions (mm) | Ø560×1470 | Ø600×1540 | Ø600×1780 |
| Collector Dimensions (mm) | 2000×1350×80 | 2000×1500×80 | 2000×1000×80 (×2) |
| Collector Quantity | 1 | 1 | 2 |
| Collector Area (m²) | 2.5 | 3.0 | 4.0 |
| Working Pressure (bar) | ≤ 4 | ||
| Outside Tank Material | Powder-coated UV-resistant steel | ||
| Inside Tank Material | Enamel liner (stainless steel optional) | ||
| Insulation | Polyurethane foam, 50 mm | ||
| Absorber Material | Aluminum plate (Cu/Al optional) | ||
| Absorber Coating | Black oxide film | ||
| Absorber Thickness (mm) | 0.4 | ||
| Absorptivity (%) | 93 | ||
| Emittance (%) | 5 | ||
| Glass Type | Textured tempered low-iron safety glass | ||
| Glass Transmittance | ≥ 91% | ||
| Glass Thickness (mm) | 3.25 | ||
| Electrical Power – All Components (kW) | 1.5 | 3.0 | 3.0 |
| Weight (kg) | 146 | 158 | 183 |
Residential homes with stable hot water demand
Villas and small-scale hospitality projects
Hotels and small manufacturing facilities
Public showers and staff accommodation
Off-grid areas with limited electrical supply
Solar-PV integrated water heating systems
Multi-family apartment buildings and dormitories with centralized domestic hot water loads
