Intelligent Water Pump Systems
AquaPress Standard
Stainless Steel Multistage Centrifugal Pumps
AquaSmart Pro
Permanent Magnet Intelligent
Horizontal Multistage Pumps
AquaTwin Prestige
Intelligent Water Supply Systems
The SOLEA pumping solutions range meets all water supply and pressure boosting needs. Stainless steel multistage pumps ensure robustness and durability for both domestic and industrial applications. Permanent magnet intelligent pumps deliver exceptional energy efficiency and quiet operation, thanks to their integrated inverter and automatic pressure control. Finally, intelligent water supply systems combine pumps, tanks, and sensors into a complete solution, ensuring constant pressure and connected management.
AquaPress Standard
Stainless Steel Multistage Centrifugal Pumps
Key Features
Recommended Use (AquaPress Standard)
Villa type: Standard villas
Living area: 120–180 m²
Number of bathrooms: 2 to 3
Suitable for: Families needing to use multiple water points simultaneously (e.g., shower + kitchen)
Benefit: A good balance between price and comfort
Recommended tank size: 24–50 L depending on villa size
AquaSmart Pro
Permanent Magnet Intelligent Horizontal Multistage Pumps
Key Features
Recommended Use (AquaSmart Pro)
Villa type: Standard to large villas
Living area: 150–250 m²
Number of bathrooms: 3 to 4
Suitable for: Families using multiple water points simultaneously (rain shower + kitchen + washbasin)
Benefit: Ideal for modern comfort and a premium experience (stable pressure under all conditions)
Internal tank: Mini tank already included
Recommended external tank: 5–10 L, to absorb micro-variations and optimize comfort
AquaTwin Prestige
Intelligent Water Supply Systems
Key Features
Recommended Use (AquaTwin Prestige)
Villa type: High-end villas or large family villas
Living area: ≥ 250 m²
Number of bathrooms: 4 or more
Also suitable for: Small apartment buildings, luxury residences, or guest houses
Benefit: Perfect for demanding customers seeking total comfort and absolute reliability
Internal tank: Built-in mini regulation tank included
Recommended external tank: 10–24 L, to absorb pressure fluctuations and stabilize the network
Materials: Pump body and hydraulic parts in stainless steel
Motor: Single-phase, IP55, Class F, with higher efficiency than jet pumps
Useful flow rate: 3–5 m³/h
Useful pressure: 3–4 bar
Service life: Longer than jet pumps, designed for sustained daily use
Noise level: Low, smooth operation
AquaPress Standard is a horizontal stainless-steel multistage pump designed to provide more stable domestic pressure than a jet pump.
It operates in ON/OFF mode via a pressure switch and requires the addition of a diaphragm tank.
A robust and efficient solution, it is ideal for medium-sized villas.
| Specification | 3XCm120C | 4XCm120C | 5XCm120C |
|---|---|---|---|
| DN1 | G1 | G1 | G1 |
| DN2 | G1 | G1 | G1 |
| L (mm) | 362 | 386 | 410 |
| W (mm) | 174 | 174 | 174 |
| H (mm) | 208 | 208 | 208 |
| L1 (mm) | 77 | 104 | 125 |
| W1 (mm) | 140 | 140 | 140 |
| H1 (mm) | 103 | 103 | 103 |
| Power (kW) | 0.6 | 0.75 | 0.9 |
| Power (HP) | 0.8 | 1.0 | 1.2 |
| Flow @ 0 m³/h (m) | 34 | 48 | 56.5 |
| Flow @ 1.2 m³/h (m) | 29 | 42.5 | 52 |
| Flow @ 2.4 m³/h (m) | 26 | 36 | 44 |
| Flow @ 3.6 m³/h (m) | 22 | 31.5 | 38.5 |
| Flow @ 4.2 m³/h (m) | 17.5 | 26 | 32 |
| Flow @ 4.8 m³/h (m) | 11.5 | 18.8 | 24 |
| Flow @ 5.0 m³/h (m) | 3.5 | 9 | 15 |
Materials: Pump body, impeller, and shaft in stainless steel
Motor: Permanent magnet synchronous motor, IE5 class (ultra-high efficiency)
Electronics: Integrated inverter + pressure sensor
Useful flow rate: 3–8 m³/h
Useful pressure: 3–6 bar (automatically adjusted)
Operating mode: Constant pressure, soft start, soft stop
Noise level: Very low, smooth and silent operation
Materials: Stainless-steel body and impellers, heavy-duty base on metal skid
Configuration: 2 vertical multistage pumps with integrated electronic control panel
Electronics: Frequency inverters + pressure sensors + full protection (overheating, dry running, overvoltage)
Useful flow rate: 6–12 m³/h (expandable depending on selected size)
Useful pressure: 3–6 bar (automatically adjusted)
Operating mode: Constant pressure, automatic pump alternation to balance wear
Noise level: Very low, smooth and silent operation
| Specification | IPM5E-EMH 12-2-1 | IPM5E-EMH 15-2-1 |
|---|---|---|
| Type | Intelligent horizontal multistage pump with permanent magnet motor | Intelligent horizontal multistage pump with permanent magnet motor |
| Recommended flow | ~ 3 – 6 m³/h | ~ 5 – 8 m³/h |
| Useful pressure range | 3 – 5 bar | 4 – 6 bar |
| Motor | Permanent magnet synchronous, efficiency > IE5 | Permanent magnet synchronous, efficiency > IE5 |
| Motor protection rating | IPX5 | IPX5 |
| Insulation class | F | F |
| Controller (VFD) – Power supply | Single-phase 220–240 V or Three-phase 380–480 V | Single-phase 220–240 V or Three-phase 380–480 V |
| Frequency | 50 / 60 Hz | 50 / 60 Hz |
| Controller protection rating | IP55 | IP55 |
| Liquid | Clean, non-aggressive water, free of gas and particles > 0.2 mm | Same |
| Liquid temperature | 0 – 60 °C | 0 – 60 °C |
| Max ambient temperature | 40 °C | 40 °C |
| Max working pressure | 10 bar | 10 bar |
| Liquid pH | 6.5 – 8.5 | 6.5 – 8.5 |
| Key functions | Intelligent pressure regulation, built-in protections, low noise | Intelligent pressure regulation, built-in protections, low noise |
| Typical applications | Villas with 3–4 bathrooms, domestic water supply, garden irrigation | Large villas (≥4 bathrooms), long pipe runs, irrigation |

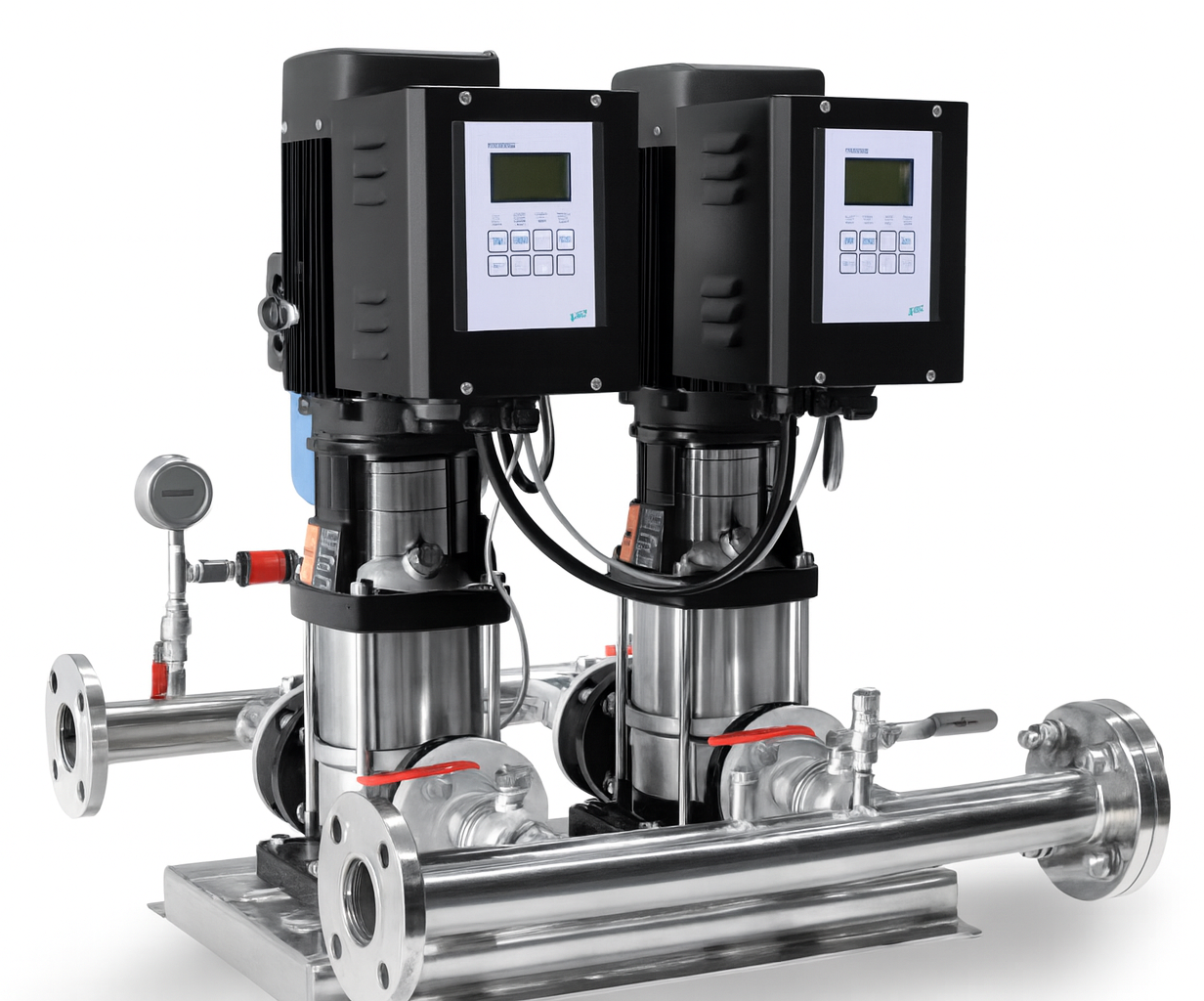

AquaTwin Prestige is an intelligent booster station composed of two vertical stainless-steel multistage pumps, controlled by an electronic panel with integrated frequency inverters (VFDs).
It operates in duty/standby mode (one pump in service, the other on standby) or in duty/assist mode (both pumps in parallel when demand increases).
This system ensures constant pressure, service continuity, and maximum reliability, making it the perfect choice for premium villas.
| Specification | BWS Water Supply System |
|---|---|
| Type | Intelligent water boosting system, PDI control |
| Composition | Pump unit, pressure tank, pressure sensor, PDI, and accessories (optional additional pumps/tanks) |
| Applications | Communities, villas, office buildings, high-rise buildings, hotels, restaurants, etc. • Boilers (hot/cold water) • Pressure boosting in water stations • Industrial production • Cooling water circulation • Fire protection |
| Power supply | 380 V, 50 Hz (60 Hz on request) |
| Ambient temperature | 4 – 40 °C |
| Liquid temperature | 0 – 70 °C |
| Liquid pH | 5 – 9 |
| Max altitude | Up to 1000 m |
| Pumped liquid | Clean water or liquids with similar physical and chemical properties |
| Integrated functions | Constant pressure • Standby energy-saving mode • Automatic start/stop • Overload protection • Low-pressure protection • Phase sequence/phase loss protection • Remote monitoring |
AquaSmart Pro is an intelligent horizontal multistage pump, equipped with a highly efficient permanent magnet motor and an integrated frequency inverter.
It automatically adjusts its speed to deliver constant pressure, regardless of consumption variations.
A built-in mini tank smooths out micro-fluctuations, and an additional external tank (5–10 L) can be added for even greater comfort.
