Complete Product Range

Comprehensive renewable energy solutions engineered for commercial scale deployment and international markets

Product Navbar (Hover-only)

Soléa Solar Water Heaters

Closed-loop flat plate solar water heaters with dual tank material options. Designed for efficient solar energy capture and low thermal loss, suitable for residential and small commercial applications.

Button Group

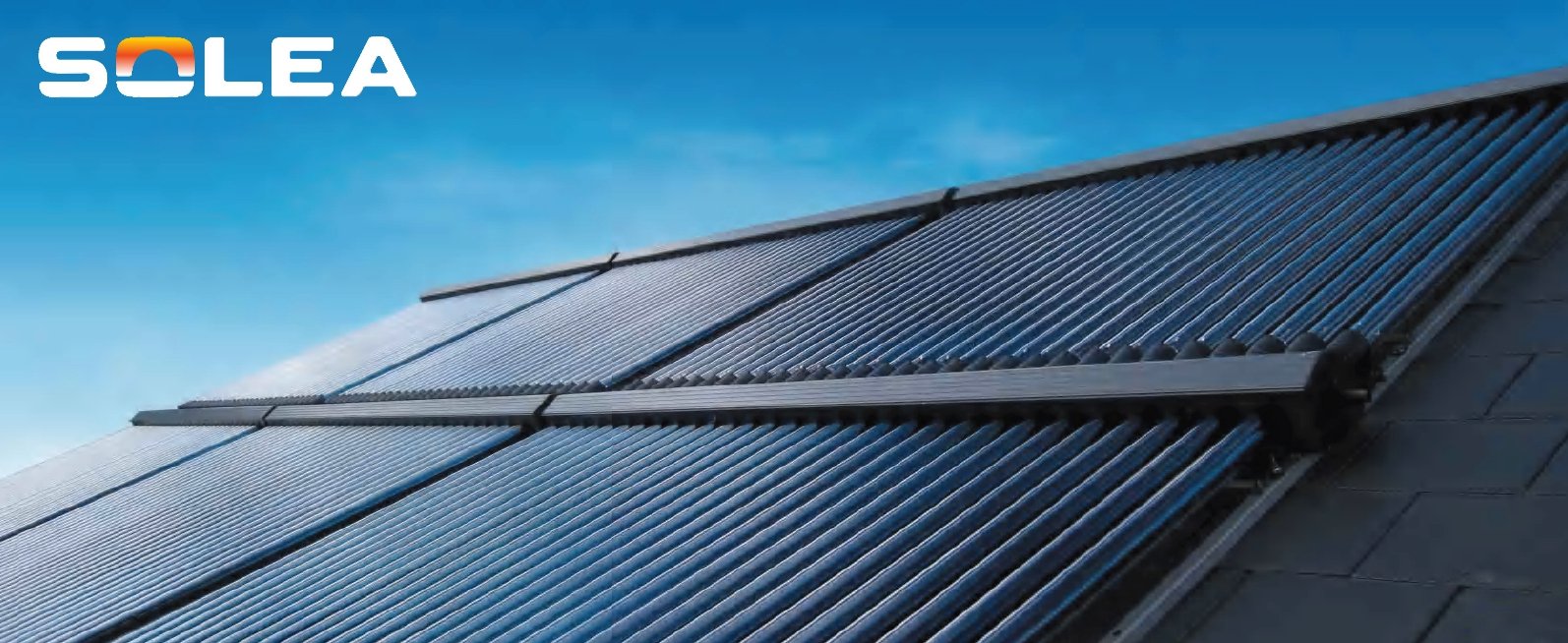

Solea Solar Water Heaters Rooftop Installed

Soléa Solar Water Heater Models
                       Soléa Vacuum Tube Solar Water Heater with Copper Coil 150L / 200L / 300L

E.g., SZ58/1800-15HE, SZ58/1800-20HE, SZ58/1800-30HE

                            Tank Volume:

                        150L / 200 L / 300 L

                            Inner Tank Material:

                        SUS304, SUS316L

                            Working Pressure:

                        0.7 MPa (6 bar)

                            Collector Model:

                        Borosillicate 3.3 Vacuum Tube

Ø 58mm * L 1800mm

150 L - 15 Tubes

200 L - 20 Tubes

300 L - 30 Tubes

                            Collector Area:

                        1.7 m² / 2.3 m² / 3.4 m²

                            Absorber Tube Coating:

                        3 Target SS-AL-NLCU

                            Tank Weight (Net/Gross):

                        44/57 kg
 53/71 kg
 72/93 kg

Certifications:
                        DIN CERTCO
                        RISE
                        Solar Keymark
                        Intertek

                     IP54
                     Outdoor
                     Pre-assembled Kit
                     Optional 3kW Backup on 300 L

                    Recommendation: Choose this enamel coated type (SWH 150E, 200E, 300E) for cost-effective installations with clean water supply; Stainless (SWH 150S) for coastal or hygiene-critical environments.

Most Popular

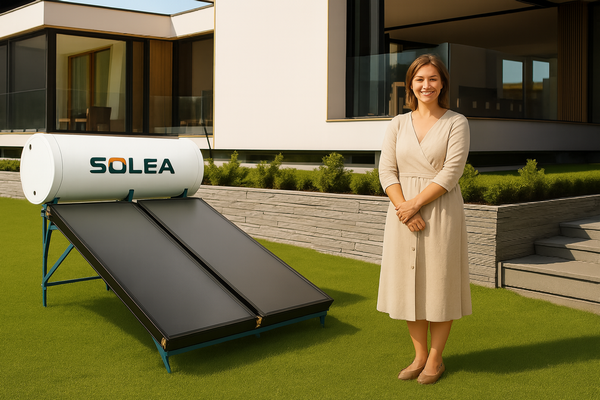

                      Soléa Plat Plate Solar Water Heater
150L / 200L / 300L

E.g., SWH 150E (Enamel), SWH 200E, SWH 300E

                            Tank Volume:

                        150 L / 200 L / 300 L

                            Inner Tank Material:

                        Enamel, SUS316L

                            Working Pressure:

                        0.7 MPa (6 bar)

                            Collector Model:

                        FPC2.0 M + FPC200 P / FPC2.5 M + FPC250 P / 2× FPC2.0 M 
 + 2× FPC200 P

                            Collector Area:

                        2.0 m² / 2.5 m² / 4.0 m²

                            Absorber Coating:

                        Blue Titanium,
 Cu-Al Black Chrome

                            Tank Weight (Net/Gross):

                        	44/57 kg
 53/71 kg
72/93 kg

Certifications:
                        DIN CERTCO
                        RISE
                        Solar Keymark
                        Intertek on 200L

                     IP54
                     Outdoor
                     Pre-assembled Kit

                    Recommendation: Choose this Vacuum Tube Solar Water Heater type (SZ58/1800-15HE, 20HE, 30HE) to deliver higher efficiency, modularity, and freeze resistance which is ideal for variable climates and high-ΔT applications. The copper coil heat-exchanger inside the water tank provides rapid, corrosion-controlled heat transfer and full hydraulic separation between collector fluid and potable water, enhancing longevity, safety, and serviceability.

                        Soléa Split System 1: Indoor Pressurized Stainless Steel Water Tank + Outdoor Flat Plate Solar Collector

E.g., MBFS -100D, 150D, 200D for direct-circulation, high efficiency, minimal hydraulics

 Outdoor Vacuum Tube Solar Collector is conditionally possible (for High-Temperature Resilience, Direct Loop Simplicity, Extended Collector Utilization).

                            Tank Volume:

                        100 L / 150L / 200L

                            Inner Tank Material:

                        SAF2205, SUS316L

                            Working Pressure:

                        0.7 MPa (6 bar)

                            Collector Model:

                        FPC1.5 M +FPC150 P /
FPC2.0 M +FPC200 P /
 FPC2.5 M +FPC250 P

                            Collector Area:

                        1.5 m² / 2.0 m² / 2.5 m²

                            Absorber Coating:

                        Blue Titanium,
Cu-Al Black Chrome

                            Tank Weight:

                        24/27 kg
30/33 kg
35/40 kg

                        Soléa Split System 2: Indoor Pressurized Enamel Coated Water Tank + Outdoor Flat Plate Solar Collector

E.g., MBFE - 100D, 150D, 200D for Lowest Upfront Cost, Sufficient Yield in Warm Climates, Simplified Componentry

                            Tank Volume:

                        100 L / 150L / 200L

                            Inner Tank Material:

                        Enamel, SUS316L

                            Working Pressure:

                        0.7 MPa (6 bar)

                            Collector Model:

                        FPC1.5 M +FPC150 P /
FPC2.0 M +FPC200 P /
 FPC2.5 M +FPC250 P

                            Collector Area:

                        1.5 m² / 2.0 m² / 2.5 m²

                            Absorber Coating:

                        Blue Titanium,
Cu-Al Black Chrome

                            Tank Weight:

                        48/51 kg
51/54 kg
58/62 kg

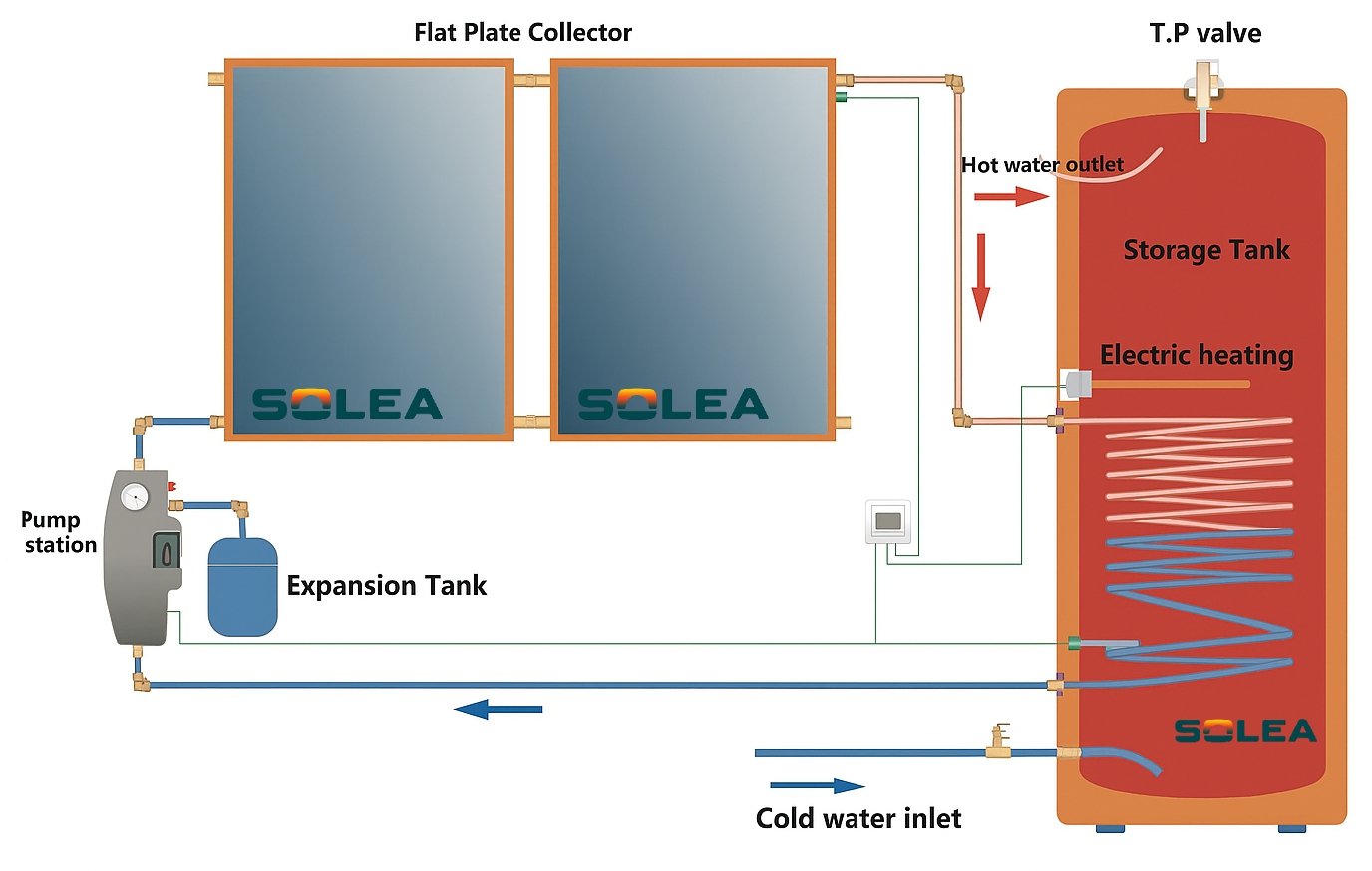

                        Soléa Split System 3: Indoor Pressurized Tank with Copper Coils + Outdoor Flat Plate Solar Collector

E.g., MST - 200D, 250D, 300D for Potable-Water Isolation, Flexible Freeze Protection, Balanced ROI

 Outdoor Vacuum Tube Solar Collector is conditionally possible (for Ultimate Off-Peak Performance, System Resilience, Integrated Safety).

                            Tank Volume:

                        200 L / 250L / 300L

                            Inner Tank Material:

                        SUS304, SUS316L

                            Working Pressure:

                        0.7 MPa (6 bar)

                            Collector Model:

                        Borosillicate 3.3 Vacuum Tube Ø 58mm * L 1800mm
  200 L - 20 Tubes
 250 L - 25 Tubes
 300 L - 30 Tubes

                            Collector Area:

                        2.3 m² / 2.9 m² / 3.4 m²

                            Absorber Coating:

                        3 Target SS-AL-NLCU

                            Tank Weight:

                        44/49 kg
 49/56 kg
 62/70 kg

Certifications:
                        DIN CERTCO
                        RISE

                     IP54
                     Outdoor
                     Pre-assembled Kit
                     Optional 3kW Backup

                    Recommendation:

*Maximum Efficiency & Lowest Complexity: Flat-Plate + MBFS

*Budget-Constrained Warm-Climate Fit: Flat-Plate + MBFE

*Balanced Protection & Cost: Flat-Plate + MST

*High-∆T Direct Loop: Vacuum-Tube + MBFS

*Premium Year-Round Yield: Vacuum-Tube + MST

Flat Plate Solar Water Heater Installed on the Roof Rooftop

Specification Table (Responsive)


        Technical Specifications
        SZ58/1800 - 15HE / 20HE / 30HE
        SWH 150E / 200E / 300E
        MBFS -100D / 150D/ 200D
 MBFE - 100D / 150D / 200D
 MST - 200D/ 250D/ 300D



        Tank Volume
        150L / 200L / 300L
        150L / 200L / 300L
        100L / 150L / 200L / 250L / 300L


        Inner Tank Material
        SUS304, SUS316L
        Carbon steel + enamel / SUS316L
        SUS304 + SUS316L or Carbon steel + enamel + SUS316L


        Max Pressure
        0.7 MPa / 6 bar
        0.7 MPa / 6 bar
        0.7 MPa / 6 bar


        Collector Area
        1.7 m² / 2.3 m² / 3.4 m²
        2.0 m² / 2.5 m² / 4.0 m²
        1.7 m² ~ 4.0 m²


        Absorber Coating
        3 Target SS-AL-NLCU
        Blue titanium/Cu/Al Black Chrome
        3 Target SS-AL-NLCU or Blue titanium/Cu/Al Black Chrome


        Certifications
        DIN CERTCO / RISE / Solar Keymark / Intertek
        DIN CERTCO / RISE / Solar Keymark / Intertek
        DIN CERTCO / RISE / Solar Keymark / Intertek


        Target Application
        2-3 person households / 3-4 person families /
  Large families or high-demand usage
        2-3 person households / 3-4 person families /
  Large families or high-demand usage
        2-3 person households / 3-4 person families /
  Large families or high-demand usage




Soléa Heat Pump Systems

High-efficiency air source heat pump systems with multiple configurations. Designed for residential and commercial applications with advanced smart controls including OTA updates, Wi-Fi, app-based monitoring, and MODBUS & BMS compatibility. R410A used only in commercial pool/compressor units.

Button Group

Soléa Heat Pump Models

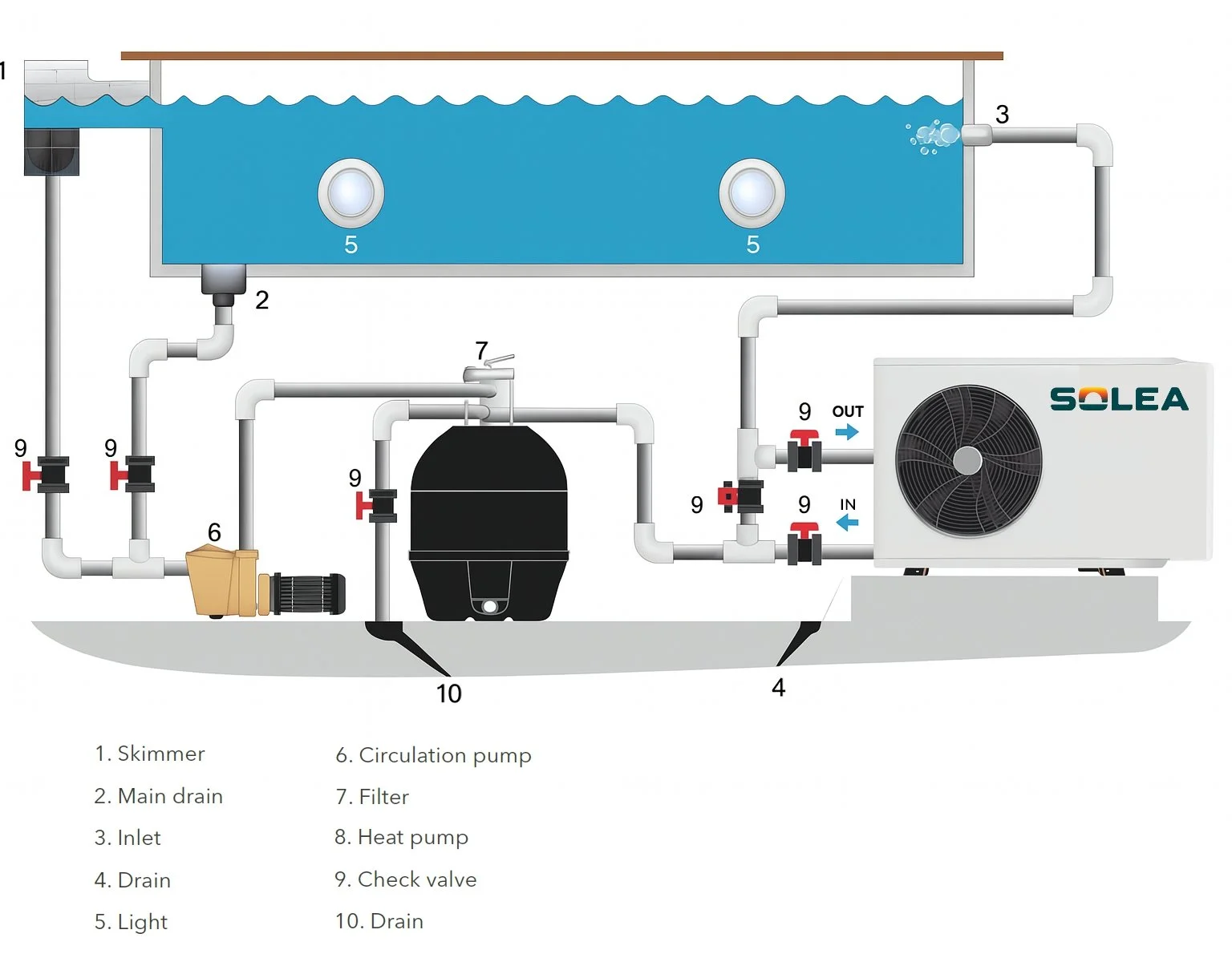

                        Soléa Monoblock R32 / R290 Pool Heat Pumps

R32: Reliable for standard climates. R290: Ultra-low GWP, eco-premium, higher water temp and better in very cold regions.

                            Refrigerant:

                        R290 / R32

                            Heating Capacity:

                        5–24 kW

                            SCOP (35°C):

                        4.6 – 4.8 (A+++ at 35 °C; A++ at 55 °C)

                            Min Operating Temp:

                        –25 °C (R32) / –30 °C (R290)

                            Max Water Temp:

                        60 °C (R32) / 75 °C (R290)

                            Noise Level:

                        40–56 dB(A) @1 m

                            Power Supply:

                        220–240 V single-phase for 5–15 kW; 380–415 V three-phase for 16 kW+

                            Applications:

                        Heating / Cooling / Domestic Hot Water

                            Dimensions:

                        1160–1339 × 480–565 × 875–1480 mm

                            Weight:

                        124–160 kg

                            Smart Control:

                        Wi-Fi / TuyaOS app

Certifications:
                        CE
                        ERP
                        UKCA
                        SG

                     IP65
                     Indoor/Outdoor
                     BMS Compatible
                     Wi-Fi Included

                    Recommendation: R32: Proven mainstream, wide installer base. R290: Eco-premium, ultra-low GWP, 75 °C hot water, best for cold climates.

Most Popular

                        Soléa R290 All-in-One Heat Pumps (Integrated Tank for Hot Water)

Installation is indoor, easy plug‑and‑play, no refrigerant piping required. These units are only for domestic hot water, not heating/cooling.

                            Refrigerant:

                        R290

                            Tank Volume:

                        92 L, 102 L, 149 L (wall-mounted) / 192 L, 246 L (floor-standing)

                            Heating Power:

                        ~2 – 3.5 kW depending on tank size

                            Power Supply:

                        220–240 V single-phase, 50 Hz

                            Min. Operating Temp:

                        –7 °C (ambient)

                            Max. Operating Temp:

                        70–75 °C (with electric heater assist)

                            COP:

                        ~2.8 – 3.5 (A+ energy class)

                            Noise:

                        ~50 dB(A) @1 m (very quiet operation)

                            Design:

                        Compact all-in-one unit (no outdoor unit)

                            Dimensions:

                        Wall-mounted: 492×547×1184–1694; Floor-standing: 600×620×1694–1989 mm

                            Weight:

                        60–122 kg

                            Smart Control:

                        Integrated LCD controller + App connectivity (remote monitoring and scheduling)

Certifications:
                        CE
                        ERP (A+ energy rating)

                     IP54
                     Indoor/Semi-Outdoor
                     Wi-Fi Included

                    Recommendation: Eco-friendly alternative to electric/gas water heaters. Designed for households and small villas prioritizing low GWP and quiet operation.

                        Soléa R32 / R290 Inverter Monobloc Heat Pumps (Heating + Cooling + Hot Water)

R32: Current mainstream, cost-effective. R290: Ultra-low GWP, stable in very cold climates, up to 75 °C hot water.

                            Refrigerant:

                        R290 / R32

                            Heating Capacity:

                        5 – 24 kW (single- and three-phase)

                            SCOP (35°C / 55°C):

                        4.6 – 5.0 (A+++ at 35 °C; A++ at 55 °C)

                            Power Supply:

                        220–240 V single-phase up to ~15 kW, 380–415 V three-phase for 16 kW+

                            Min Operating Temp:

                        –25 °C (R32) / –30 °C (R290 with EVI)**

                            Max Operating Temp:

                        60 °C (R32) / 75 °C (R290)

                            Operating Modes:

                        Heating / Cooling / Domestic Hot Water

                            Noise Level:

                        40–56 dB(A) @1 m (low-noise inverter fans and compressors)

                            Compressor / Fan:

                        Full DC inverter, twin-rotary, variable speed

                            Defrosting & Low Temp:

                        Automatic defrost, stable output down to –15 °C and safe operation to –30 °C (R290)

                            Dimensions:

                        1160–1339 × 480–565 × 875–1480 mm (varies by model size)

                            Weight:

                        124 – 180 kg (varies by model)

                            Control:

                        LCD wired controller + Wi-Fi / TuyaOS app remote control

Certifications:
                        CE
                        ERP
                        UKCA
                        SG

                     IP65
                     Outdoor
                     BMS Compatible
                     Wi-Fi Included

                    Recommendation: R290 is future-proof: Complies with upcoming F-Gas restrictions (GWP = 3). R32 is safer to handle: Mildly flammable (A2L), wide installer availability. Performance: R290 offers better low-temperature stability and higher domestic hot water temperature.

Specification Table (Responsive)


        Technical Specifications
        Soléa Monoblock R32 / R290 Pool Heat Pumps
        Soléa R290 All-in-One Heat Pumps
 (Integrated Tank for Hot Water)
        Soléa R32 / R290 Inverter Monoblock
 (Heating + Cooling + Hot Water)



        Refrigerant
        R32 / R290
        R290
        R32 / R290


        Heating Capacity
        5 – 24 kW
        ~2 – 3.5 kW (depending on tank size)
        5 – 24 kW (single-phase & three-phase)


        SCOP / COP
        4.6 – 4.8 (at 35 °C) / A+++ at 35 °C, A++ at 55 °C
        COP 2.8 – 3.5 (A+ energy class)
        4.6 – 5.0 (SCOP at 35 °C) / A+++ at 35 °C, A++ at 55 °C


        Operating Modes
        Heating / Cooling (Pool)
        Domestic Hot Water Only
        Heating / Cooling / Domestic Hot Water


        Min. Operating Temp
        -25 °C (R32) / -30 °C (R290)
        -7 °C (ambient)
        -25 °C (R32) / -30 °C (R290 with EVI)


        Max. Water Temp
        60 °C (R32) / 75 °C (R290)
        70 – 75 °C (with electric heater assist)
        60 °C (R32) / 75 °C (R290)


        Noise Level
        40 – 56 dB(A) @ 1m
        ≈50 dB(A) @ 1m (quiet)
        40 – 56 dB(A) @ 1m (low-noise inverter fans)


        Power Supply
        220–240 V single-phase (5–15 kW)
380–415 V three-phase (>16 kW)
        220–240 V single-phase
        220–240 V single-phase up to 15 kW
380–415 V three-phase for 16 kW+


        Compressor / Fan
        Full DC inverter
        Integrated fan/compressor
        Full DC inverter, twin rotary, variable speed


        Dimensions (mm)
        1160–1339 × 480–565 × 875–1480
        Wall: 492×547×1184–1694
Floor: 600×620×1694–1989
        1160–1339 × 480–565 × 875–1480


        Weight
        124 – 160 kg
        60 – 122 kg
        124 – 180 kg


        Smart Controls
        Wi-Fi / TuyaOS app
        Integrated LCD + App (remote scheduling)
        LCD wired controller + Wi-Fi / TuyaOS app


        Certifications
        CE, ERP, UKCA, SG
        CE, ERP (A+)
        CE, ERP, UKCA, SG




Energy Storage Systems

Scalable lithium iron phosphate (LFP) battery systems with intelligent BMS technology. Engineered for commercial applications with modular architecture supporting seamless integration across residential, commercial, and industrial deployments.

Button Group

Specification Table (Responsive)


        Technical Specifications
        5.2kWh Wall-Mount
        15kWh Stack-Mount
        30kWh+ Stack-Mount



        Cell Technology
        LiFePO4 (LFP)
        LiFePO4 (LFP)
        LiFePO4 (LFP)


        Depth of Discharge
        95%
        95%
        95%


        Cycle Life
        6,000+ cycles
        6,000+ cycles
        6,000+ cycles


        Communication
        RS485 / CAN
        RS485 / CAN
        RS485 / CAN


        Parallel Capability
        Up to 6 units
        Series & Parallel
        Multiple configurations


        Certifications
        CE, IEC62619, UN38.3
        CE, IEC62619, UN38.3
        CE, IEC62619, UN38.3


        Operating Temperature
        -10°C to +50°C
        -20°C to +60°C
        -20°C to +60°C


        Target Market
        Small Commercial
        Medium Commercial
        Large Commercial & Industrial




Soléa Energy Storage System Models

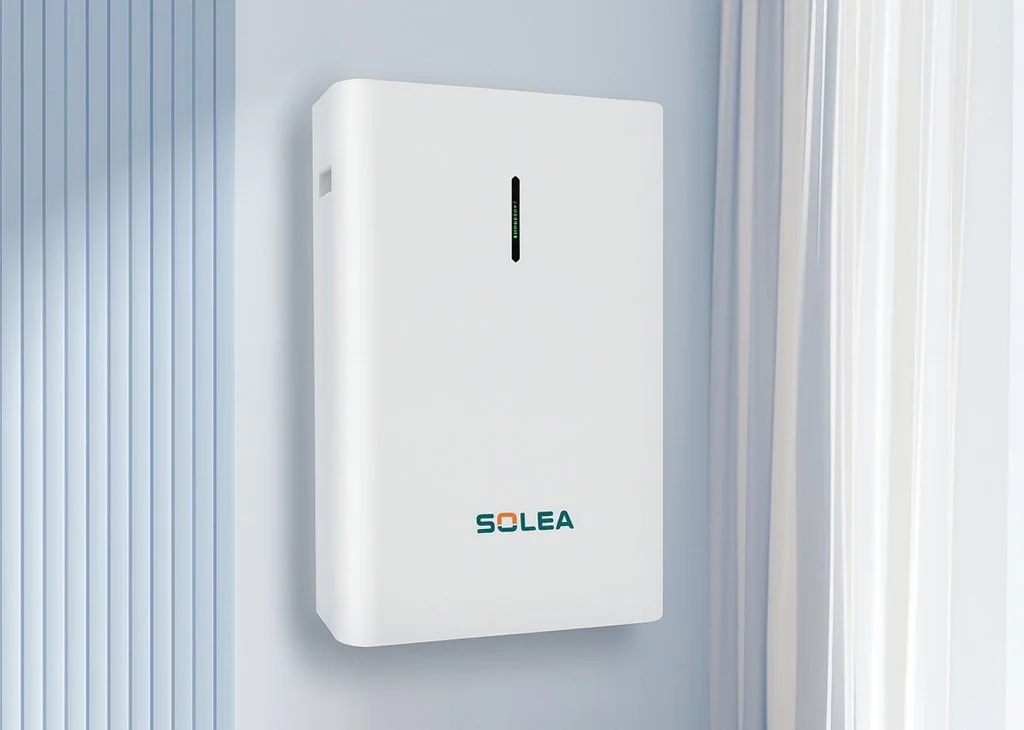

                        Soléa ESS – 5.2kWh Wall-Mounted

Model: PowerCool-LFP-WLV5000 (LV)

                            Total Energy:

                        5.22 kWh

                            Usable Energy:

                        4.96 kWh

                            Voltage:

                        51.2 V (44.8–57.6 V)

                            Max Current:

                        80A / 50A

                            IP Rating:

                        IP20

                            Dimensions:

                        640 × 420 × 161.5 mm

                            Weight:

                        47 kg

Certifications:
                        CE
                        IEC62619
                        UN38.3
                        MSDS

                     IP20
                     Indoor
                     RS485/CAN
                     Remote Monitoring

                    Recommendation: Ideal for small PV systems with space constraints. Best suited for indoor walls or server closets.

Most Popular

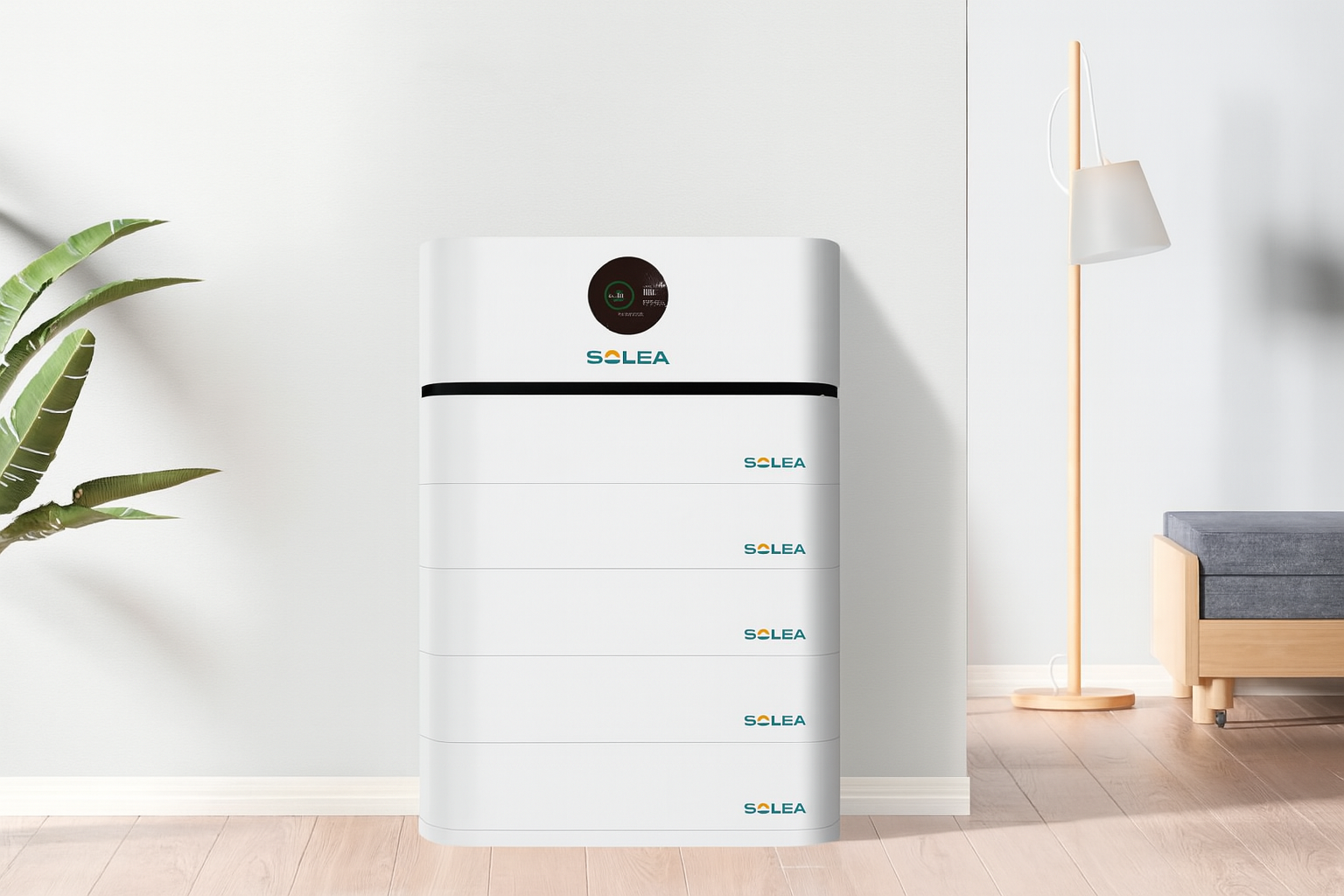

                        Soléa ESS – 15kWh Stack-Mounted

Model: PowerCool-LFP-LV

                            Total Energy:

                        15.66 kWh

                            Usable Energy:

                        14.88 kWh

                            Voltage:

                        153.6 V

                            Max Current:

                        150 A

                            IP Rating:

                        IP55

                            Dimensions:

                        720 × 420 × 758 mm

                            Weight:

                        163 kg

Certifications:
                        CE
                        IEC62619
                        UN38.3
                        MSDS

                     IP55
                     Indoor/Outdoor
                     RS485/CAN
                     Remote Monitoring

                    Recommendation: Best fit for off-grid cabins or multi-bedroom homes. Can be upgraded as energy needs grow.

                        Soléa ESS – 30kWh+ Stack-Mounted

Model: PowerCool-LFP-HV2 (HV)

                            Total Energy:

                        30.72 kWh

                            Usable Energy:

                        29.18 kWh

                            Voltage:

                        307.2 V (268.8–345.6 V)

                            Max Current:

                        160 A

                            IP Rating:

                        IP66

                            Dimensions:

                        660 × 390 × 1115 mm

                            Weight:

                        287 kg

Certifications:
                        CE
                        IEC62619
                        UN38.3
                        MSDS

                     IP66
                     Indoor/Outdoor
                     RS485/CAN
                     Remote Monitoring

                    Recommendation: Perfect for commercial rooftops or C&I projects. Pairs well with Soléa 8–25 kW hybrid inverters.

PV + Inverter Systems

Advanced hybrid inverters for seamless integration of PV and battery systems. Engineered for residential and commercial applications with smart energy management and high efficiency.

Button Group

Inverter

PV

Soléa Inverter Models
                        Soléa Inverter – 3.6kW (Single-Phase)

Model: Ares 3.6KL

                            Max DC Input:

                        5.4 kW

                            MPPT Voltage:

                        150-500 V

                            Efficiency:

                        98.1%

                            AC Output:

                        3.6 kW

                            Battery Voltage:

                        51.2 V (LV)

                            Max Battery Current:

                        80A / 50A

                            Surge Rating:

                        5.4 kVA (1.5x rated output for 10s)

                            Dimensions:

                        370×535×192 mm

                            Weight:

                        18.5 kg

Certifications:
                        CE
                        VDE4105
                        G98/G99
                        NRS097
                        IEC62109

                    Application: Pair with PowerCool-WLV5000 or 10/15kWh stackable ESS. Ideal for 2–3kW PV arrays in residential rooftops.

Most Popular

                        Soléa Inverter – 5kW (Single-Phase)

Model: Ares 5KL

                            Max DC Input:

                        7.5 kW

                            MPPT Voltage:

                        150-500 V

                            Efficiency:

                        98.1%

                            AC Output:

                        5.0 kW

                            Battery Voltage:

                        51.2 V

                            Max Battery Current:

                        100A

                            Surge Rating:

                        7.5 kVA (1.5x rated output for 10s)

                            Dimensions:

                        370×535×192 mm

                            Weight:

                        20.5 kg

Certifications:
                        CE
                        IEC62109
                        VDE0126
                        EN50549

                    Application: Ideal for 10–15kWh ESS stacks. Works in on-grid or hybrid modes with backup power capability.

                        Soléa Inverter – 17kW (Three-Phase)

Model: Ares 17KH3

                            Max DC Input:

                        25.5 kW

                            MPPT Voltage:

                        150-850 V

                            Efficiency:

                        98.3%

                            AC Output:

                        17 kW

                            Battery Voltage:

                        400 V (HV)

                            Max Battery Current:

                        50A

                            Surge Rating:

                        25.5 kVA (1.5x rated output for 10s)

                            Dimensions:

                        558×535×260 mm

                            Weight:

                        29 kg

Certifications:
                        CE
                        VDE-AR-N4105
                        G99
                        IEC62109

                    Application: Compatible with high-voltage ESS (30–36kWh). Suited for villas, farms, and commercial rooftops with PowerCool-HV systems.

Specification Table (Responsive)


        Technical Specifications
        3.6kW Single-Phase
        5kW Single-Phase
        17kW Three-Phase



        Max DC Input Power
        5.4 kW
        7.5 kW
        25.5 kW


        MPPT Voltage Range
        150-500 V
        150-500 V
        150-850 V


        Efficiency
        98.1%
        98.1%
        98.3%


        AC Output
        3.6 kW
        5.0 kW
        17 kW


        Battery Voltage
        51.2 V (LV)
        51.2 V
        400 V (HV)


        Max Battery Current
        80A / 50A
        100A
        50A


        Surge Rating
        5.4 kVA
        7.5 kVA
        25.5 kVA


        Certifications
        CE, VDE4105, G98/G99, NRS097, IEC62109
        CE, IEC62109, VDE0126, EN50549
        CE, VDE-AR-N4105, G99, IEC62109


        Protection
        IP65
        IP65
        IP65




Inverter

Soléa Inverter Models
                        Soléa PV – STP405-C72/Pmh+ (405W)

3–4 kWp arrays

                            Max DC Input:

                        405 W

                            Optimum Voltage:

                        38.3 V

                            Module Efficiency:

                        20.9%

                            Optimum Current:

                        10.65 A

                            Open Current Voltage:

                        46.21 V

                            Short Circuit Current:

                        13.83 A

                            Temp. Range:

                        –40 °C to +85 °C

                            Dimensions:

                        2278×1134×30 mm

                            Weight:

                        32 kg (70.5 lbs)

Certifications:
                        CE
                        UL
                        IEC61215
                        IEC61730

                    Application: Moderate power output matches well with small residential applications such as Soléa Inverter – 3.6kW (Single-Phase).

Most Popular

                        Soléa PV – STP455-C72/Pmh+ (455W)

~4–6 kWp arrays

                             Max DC Input:

                        455 W

                            Optimum Voltage:

                        38.9 V

                            Module Efficiency:

                        21.1%

                            Optimum Current:

                        11.7 A

                            Open Current Voltage:

                        46.9 V

                            Short Circuit Current:

                        13.96 A

                            Temp. Range:

                        –40 °C to +85 °C

                            Dimensions:

                        2278×1134×30 mm

                            Weight:

                        32 kg (70.5 lbs)

Certifications:
                        CE
                        UL
                        IEC61215
                        IEC61730

                    Application: Medium capacity fits ideally within residential rooftop installations such as Soléa Inverter – 5kW (Single-Phase).

                        Soléa PV – STP555-C72/Pmh+ (555W)

15–20 kWp

                            Max DC Input:

                        555 W

                            Optimum Voltage:

                        42.24 V

                            Module Efficiency:

                        21.5%

                            Optimum Current:

                        13.14 A

                            Open Current Voltage:

                        50.07 V

                            Short Circuit Current:

                        14.07 A

                            Temp. Range:

                        –40 °C to +85 °C

                            Dimensions:

                        2278×1134×30 mm

                            Weight:

                        32 kg (70.5 lbs)

Certifications:
                        CE
                        UL
                        IEC61215
                        IEC61730

                    Application: High-capacity module complements large-scale or commercial rooftop applications such as Soléa Inverter – 17kW (Three-Phase).

PV Module Specification Table (Responsive Full Width)


          Technical Specifications
          STP405-C72/Pmh+
(405 W)
          STP455-C72/Pmh+
(455 W)
          STP555-C72/Pmh+
(555 W)



          Maximum Power
          405 W
          455 W
          555 W


          Optimum Voltage
          38.30 V
          38.90 V
          42.24 V


          Optimum Current
          10.65 A
          11.70 A
          13.14 A


          Open-Circuit Voltage
          46.21 V
          46.90 V
          50.07 V


          Short-Circuit Current
          13.83 A
          13.96 A
          14.07 A


          Module Efficiency
          20.90 %
          21.10 %
          21.50 %


          MPPT Voltage Range
          150–500 V
          150–500 V
          150–850 V


          Maximum System Voltage
          1500 V DC (IEC)
          1500 V DC (IEC)
          1500 V DC (IEC)


          Operating Module Temp.
          –40 °C to +85 °C
          –40 °C to +85 °C
          –40 °C to +85 °C


          Cell Type & Count
          Mono-Si 182 mm, 144 (6×24)
          Mono-Si 182 mm, 144 (6×24)
          Mono-Si 182 mm, 144 (6×24)


          Dimensions
          2278 × 1134 × 30 mm
          2278 × 1134 × 30 mm
          2278 × 1134 × 30 mm


          Weight
          32 kg (70.5 lbs)
          32 kg (70.5 lbs)
          32 kg (70.5 lbs)


          Front/Back Glass
          2.0 ± 0.2 mm semi-tempered
          2.0 ± 0.2 mm semi-tempered
          2.0 ± 0.2 mm semi-tempered


          Output Cables
          4.0 mm²; –350 mm / +160 mm
          4.0 mm²; –350 mm / +160 mm
          4.0 mm²; –350 mm / +160 mm


          Junction Box
          IP68 (3 bypass diodes)
          IP68 (3 bypass diodes)
          IP68 (3 bypass diodes)


          Connectors
          STP-XC4
          STP-XC4
          STP-XC4


          Max. Series Fuse Rating
          25 A
          25 A
          25 A


          Power Tolerance
          0 / + 5 W
          0 / + 5 W
          0 / + 5 W


          Bifaciality Factor (rear gain)
          (+70 ± 5 %)
          (+70 ± 5 %)
          (+70 ± 5 %)


          Frame
          Anodized aluminum alloy
          Anodized aluminum alloy
          Anodized aluminum alloy


          Packing
          36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg
          36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg
          36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg


          Temp. Coefficient of Pmax
          –0.34 %/°C
          –0.34 %/°C
          –0.34 %/°C


          Temp. Coefficient of Voc
          –0.26 %/°C
          –0.26 %/°C
          –0.26 %/°C


          Temp. Coefficient of Isc
          +0.05 %/°C
          +0.05 %/°C
          +0.05 %/°C


          Certifications
          IEC 61215, IEC 61730, CE, UL
          IEC 61215, IEC 61730, CE, UL
          IEC 61215, IEC 61730, CE, UL
