Monobloc Heat Pump with Hydraulic Module
Efficient heating and cooling solution for both pools and underfloor systems — combining performance, durability, and easy integration.
Monobloc Heat Pump with Hydraulic Module for Heated Pool and Floor
✔ High Efficiency, A+++ Ready
✔ Eco Refrigerants (R290 / R32)
✔ Outlet Water up to 60–75 °C
✔ Smart, Eco-Friendly Water Heating & Heating Solution
for Residential and Commercial Use
Product Highlights
Eco-Friendly Refrigerants
Uses R290 or R32 refrigerants for sustainable heating with low environmental impact.
High-Temperature Output
Delivers hot water up to 75°C (R290) or 60°C (R32) for versatile heating needs.
High Efficiency
Features high seasonal efficiency (SCOP A+++ ready) for reduced running costs.
Quiet Operation
Full DC inverter compressors and fans ensure precise modulation and quiet performance.
Wide Operating Range
Operates effectively in cold climates down to –25°C (R290) or –30°C (R32).
Smart Control
Supports Wi-Fi control with OTA updates for convenient remote monitoring.
Product Overview
| Model (R290) | MMHP-15D1 | MMHP-22D1 | MMHP-22D3 |
|---|---|---|---|
| Heating Capacity (A7/W35) kW | 2.99–8.16 | 4.25–14.55 | 6.36–19.45 |
| Input Power (A7/W35) kW | 0.75–2.92 | 1.25–4.25 | 1.88–5.85 |
| Input Current (A) | 4.57–12.79 | 6.71–18.8 | 9.84–30.12 |
| SCOP (A7/W35) | 4.88 | 3.86 | 3.94 |
| Heating Capacity (A7/W55) kW | 2.15–6.85 | 3.15–10.25 | 4.63–13.95 |
| SCOP (A7/W55) | 3.84 | 3.86 | 3.93 |
| Refrigerant / Charge (kg) | R290 / 0.56 | R290 / 1.05 | R290 / 1.43 |
| Power Supply | 220–240V / 50Hz | 220–240V / 50Hz | 380–415V / 50Hz |
| CO₂ Equivalent (t) | 0.002 | 0.002 | 0.004 |
| Product Size (mm) | 1285×485×930 | 1285×485×930 | 1285×485×930 |
| Packed Size (mm) | 1405×530×1030 | 1405×530×1030 | 1405×530×1030 |
| Net Weight (kg) | 134 | 146 | 208 |
| Packed Weight (kg) | 146 | 160 | 228 |
| Model (R32) | MMHP-008B1 | MMHP-012B2 | MMHP-016B1/B2 | MMHP-020B1/B2 | MMHP-020B2 |
|---|---|---|---|---|---|
| Heating Capacity (A7/W35) kW | 2.5–8.3 | 4.7–12.2 | 5.3–16.6 | 6.2–20.5 | 8.3–26.1 |
| Input Power (A7/W35) kW | 0.57–1.92 | 0.86–2.88 | 1.15–3.84 | 1.23–4.21 | 1.53–5.08 |
| Input Current (A) | 2.53–8.52 | 3.82–12.77 | 5.1–18.14 | 2.31–8.86 | 2.87–10.35 |
| SCOP (A7/W35) | 4.92 | 4.55 | 4.88 | 4.87 | 4.87 |
| Heating Capacity (A7/W55) kW | 2.3–7.62 | 3.18–11.25 | 4.9–15.1 | 6.3–19.9 | 8.9–26.1 |
| SCOP (A7/W55) | 3.37 | 3.41 | 3.35 | 3.39 | 3.42 |
| Refrigerant / Charge (kg) | R32 / 1.675 | R32 / 1.675 | R32 / 2.875 | R32 / 2.875 | R32 / 3.675 |
| CO₂ Equivalent (t) | 1.13 | 1.13 | 1.94 | 1.94 | 2.48 |
| Product Size (mm) | 1100×498×850 | 1100×498×850 | 1100×598×850 | 1100×598×850 | 1100×598×850 |
| Packed Size (mm) | 1140×530×1000 | 1140×530×1000 | 1140×650×1000 | 1140×650×1000 | 1140×650×1000 |
| Net Weight (kg) | 102 | 107 | 146 | 160 | 170 |
| Packed Weight (kg) | 114 | 119 | 158 | 172 | 182 |
| Hydraulic Unit | HU-3K/6L (MHY-3K) | HU-9K/6L (MHY-9K) |
|---|---|---|
| Power Supply | ~240V/1N/50Hz | ~415V/3N/50Hz |
| Ambient Temperature (°C) | -25~45 | -25~45 |
| Rated Flow (m³/h) | 2.5 | 2.5 |
| Electric Heating (kW) | 3 | 3/6/9 |
| Auxiliary Heater Power (kW) | 3 | 3/6/9 |
| Power Input Max (kW) | 3.5 | 9.5 |
| Current Input Max (A) | 15.6 | 16.2 |
| Electrical Shockproof | I | I |
| IP Class | IPX1 | IPX1 |
| Water Pressure Difference (kPa) | 10 | 10 |
| Water Pressure Range (MPa) | 0.1~0.3 | 0.1~0.3 |
| Noise (dB(A)) | 35 | 35 |
| Unit Dimensions (mm) | 420×261×669 | 420×261×669 |
| Shipping Dimensions (mm) | 480×341×770 | 480×341×770 |
| Net Weight (kg) | 34 | 34 |
| Gross Weight (kg) | 37 | 37 |
Heat Pump Water Heater System
Professional Grade Specifications & Applications
Technical Specifications
Heating down to -25°C (R290) or -30°C.
Hot water up to 75°C or 60°C.
Full DC inverter rotary compressor.
Low-noise axial fan with glass-fiber blades.
Monobloc outdoor unit — no indoor refrigerant.
For space heating, hot water, optional cooling.
Microprocessor control with defrost, weather compensation, Wi-Fi.
Application Scenarios
Residential homes with stable hot water demand.
Villas and small-scale hospitality projects.
Hotels and small manufacturing facilities.
Public showers and staff accommodation.
Off-grid areas with limited electrical supply.
Solar-PV integrated water heating systems.
Multi-family apartment buildings and dormitories with centralized DHW loads.
Product Overview
Technical Specifications
| Model | MAHP-200AD | MAHP-270AD | MAHP-120C1 | MAHP-150C1 |
|---|---|---|---|---|
| Tank Capacity (L) | 200 | 270 | 120 | 150 |
| Refrigerant | R290 | R290 | R134a | R134a |
| Power Supply | 220–240V / 50Hz | |||
| Heating Capacity at Air 20°C / 15°C, Water Temperature from 15°C to 55°C | ||||
| COP (W/W) | 4.15 | 4.15 | 4.16 | 4.16 |
| Rated Heating Capacity (W) | 2780 | 2800 | 2500 | 2500 |
| Max Input Power (W) | 3000 | 3000 | 3000 | 3000 |
| Max Input Current (A) | 14 | 14 | 15 | 15 |
| Heat Pump – Rated Power (W) | 1200 | 1200 | 565 | 565 |
| Heat Pump – Rated Current (A) | 5.3 | 5.3 | 2.5 | 2.5 |
| Electric Heater – Rated Power (W) | 1800 | 1800 | 2000 | 2000 |
| Electric Heater – Rated Current (A) | 7.5 | 7.5 | 8.9 | 8.9 |
| Compressor | GMCC | GMCC | GMCC | GMCC |
| Working Temperature Range (°C) | -7~43 | -7~43 | -7~43 | -7~43 |
| Max Allowable Pressure (MPa) | 3 | 3 | 3 | 3 |
| Max Pressure – Exhaust Side (MPa) | 3 | 3 | 3 | 3 |
| Max Pressure – Suction Side (MPa) | 0.8 | 0.8 | 0.8 | 0.8 |
| Net Weight (kg) | 104 | 118 | 89 | 92 |
| Noise (dBA) | 43 | 43 | 48 | 48 |
| Net Dimensions (mm) | 620×620×1620 | 620×620×1850 | 500×500×1550 | 500×500×1670 |
| Packed Dimensions (mm) | 700×700×1740 | 700×700×1970 | 640×640×1720 | 640×640×1840 |
| Loading Qty (20GP/40HC) | 24 / 51 | 24 / 51 | 24 / 51 | 24 / 51 |

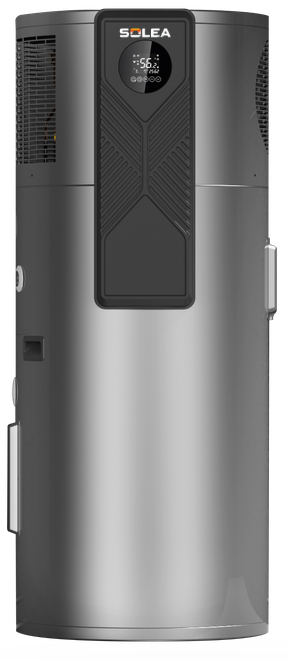

MAHP-200AD & MAHP-270AD Series
MAHP-120C1 & MAHP-150C1 Series
