Complete Product Range

Comprehensive renewable energy solutions engineered for commercial scale deployment and international markets

Soléa Solar Water Heaters

Closed-loop flat plate solar water heaters with dual tank material options. Designed for efficient solar energy capture and low thermal loss, suitable for residential and small commercial applications.

Button Group

Solar Water Heater Solutions

Soléa Vacuum Tube Solar Water HeaterSZ58/1800 - 15HE / 20HE / 30HE

                            Tank Volume:

                        150L / 200L / 300L

                            Inner Tank Material:

                        SUS304, SUS316L

                            Max Pressure:

                        0.7 MPa / 6 bar

                            Collector Area:

                        1.7 m² / 2.3 m² / 3.4 m²

                            Absorber Coating:

                        3 Target SS-AL-NLCU

                    Target Application:
                    2-3 person households / 3-4 person families / Large families or high-demand usage

Certifications:
                        DIN CERTCO
                        RISE
                        Solar Keymark
                        Intertek

Most Popular

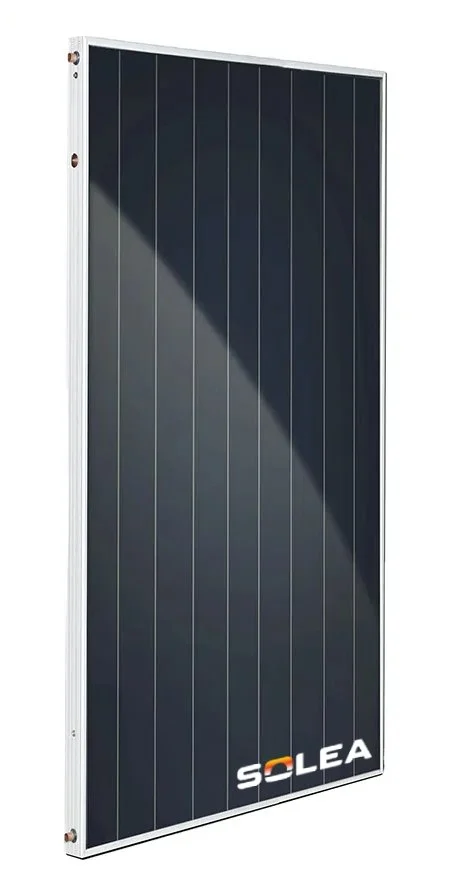

Soléa Flat Plate Solar Water HeaterSWH 150E / 200E / 300E

                            Tank Volume:

                        150L / 200L / 300L

                            Inner Tank Material:

                        Carbon steel + enamel / SUS316L

                            Max Pressure:

                        0.7 MPa / 6 bar

                            Collector Area:

                        2.0 m² / 2.5 m² / 4.0 m²

                            Absorber Coating:

                        Blue titanium / Cu/Al Black Chrome

                    Target Application:
                    2-3 person households / 3-4 person families / Large families or high-demand usage

Certifications:
                        DIN CERTCO
                        RISE
                        Solar Keymark
                        Intertek

Soléa Split System
 SolutionsMBFS / MBFE / MST Series

                            Tank Volume:

                        100L / 150L / 200L / 250L / 300L

                            Inner Tank Material:

                        SUS304 + SUS316L or Carbon steel + enamel + SUS316L

                            Max Pressure:

                        0.7 MPa / 6 bar

                            Collector Area:

                        1.7 m² ~ 4.0 m²

                            Absorber Coating:

                        3 Target SS-AL-NLCU or Blue titanium/Cu/Al Black Chrome

                    Target Application:
                    2-3 person households / 3-4 person families / Large families or high-demand usage

Certifications:
                        DIN CERTCO
                        RISE
                        Solar Keymark
                        Intertek

Soléa Heat Pump Systems

High-efficiency air source heat pump systems with multiple configurations. Designed for residential and commercial applications with advanced smart controls including OTA updates, Wi-Fi, app-based monitoring, and MODBUS & BMS compatibility. R410A used only in commercial pool/compressor units.

Button Group

Solar Water Heater Solutions

Soléa Monobloc R32/R290 Pool Heat PumpPool Heating Series

                            Refrigerant:

                        R32 / R290

                            Heating Capacity:

                        4.6–26.3 kW

                            Hot Water Temperature:

                        75°C (R290) / 60°C (R32)

                            Heating Range:

                        −25°C (R290) / −30°C (R32)

                            Noise Level:

                        40–56 dB(A) @1m

                    Applications:
                    Pool heating, space heating, hot water, optional cooling

Features:
                        Microprocessor Control
                        Wi-Fi
                        Weather Compensation

Most Popular

Soléa R290 All-in-One Heat PumpWall-Mounted Series

                            Refrigerant:

                        R290

                            Heating Capacity:

                        2–3.5 kW

                            Hot Water Temperature:

                        70–75°C

                            Heating Range:

                        −7°C (ambient)

                            Noise Level:

                        ~50 dB(A) @1m

                    Applications:
                    Hot water (wall-mounted)

Features:
                        Smart Control
                        Wi-Fi
                        TuyaOS

Soléa R32/R290 Heat
 PumpMulti-Function Series

                            Refrigerant:

                        R32 / R290

                            Heating Capacity:

                        5–24 kW

                            Hot Water Temperature:

                        75°C (R290) / 60°C (R32)

                            Heating Range:

                        −25°C (R32) / −30°C (R290)

                            Noise Level:

                        40–56 dB(A) @1m

                    Applications:
                    Heating, cooling, domestic hot water

Features:
                        Smart Control
                        Wi-Fi
                        TuyaOS
                        Cooling Function

Energy Storage Systems

Scalable lithium iron phosphate (LFP) battery systems with intelligent BMS technology. Engineered for commercial applications with modular architecture supporting seamless integration across residential, commercial, and industrial deployments.

Button Group

Battery Storage Solutions

Soléa 5.2kWh Wall-Mount BatteryWall-Mount Series

                            Cell Technology:

                        LiFePO4 (LFP)

                            Depth of Discharge:

                        95%

                            Cycle Life:

                        6,000+ cycles

                            Communication:

                        RS485 / CAN

                            Parallel Capability:

                        Up to 6 units

                    Target Market:
                    Small Commercial applications

Certifications:
                        CE
                        IEC62619
                        UN38.3

Most Popular

Soléa 15kWh Stack-Mount BatteryStack-Mount Series

                            Cell Technology:

                        LiFePO4 (LFP)

                            Depth of Discharge:

                        95%

                            Cycle Life:

                        6,000+ cycles

                            Communication:

                        RS485 / CAN

                            Parallel Capability:

                        Series & Parallel

                    Target Market:
                    Medium Commercial applications

Certifications:
                        CE
                        IEC62619
                        UN38.3

Soléa 30kWh+ Stack-Mount
 BatteryIndustrial Series

                            Cell Technology:

                        LiFePO4 (LFP)

                            Depth of Discharge:

                        95%

                            Cycle Life:

                        6,000+ cycles

                            Communication:

                        RS485 / CAN

                            Parallel Capability:

                        Multiple configurations

                    Target Market:
                    Large Commercial & Industrial applications

Certifications:
                        CE
                        IEC62619
                        UN38.3

PV + Inverter Systems

Advanced hybrid inverters for seamless integration of PV and battery systems. Engineered for residential and commercial applications with smart energy management and high efficiency.

Button Group

Inverter

PV

Solar Inverter Solutions

Soléa 3.6kW Single-Phase InverterSingle-Phase Series

                            Max DC Input Power:

                        5.4 kW

                            MPPT Voltage Range:

                        150-500 V

                            Efficiency:

                        98.1%

                            AC Output:

                        3.6 kW

                            Battery Voltage:

                        51.2 V (LV)

                    Key Features:
                    Surge rating: 5.4 kVA • Max battery current: 80A/50A • Protection: IP65

Certifications:
                        CE
                        VDE4105
                        G98/G99
                        NRS097
                        IEC62109

Most Popular

Soléa 5kW Single-Phase InverterResidential Series

                            Max DC Input Power:

                        7.5 kW

                            MPPT Voltage Range:

                        150-500 V

                            Efficiency:

                        98.1%

                            AC Output:

                        5.0 kW

                            Battery Voltage:

                        51.2 V

                    Key Features:
                    Surge rating: 7.5 kVA • Max battery current: 100A • Protection: IP65

Certifications:
                        CE
                        IEC62109
                        VDE0126
                        EN50549

Soléa 17kW Three-Phase
 InverterCommercial Series

                            Max DC Input Power:

                        25.5 kW

                            MPPT Voltage Range:

                        150-850 V

                            Efficiency:

                        98.3%

                            AC Output:

                        17 kW

                            Battery Voltage:

                        400 V (HV)

                    Key Features:
                    Surge rating: 25.5 kVA • Max battery current: 50A • Protection: IP65

Certifications:
                        CE
                        VDE-AR-N4105
                        G99
                        IEC62109

Specification Table (Responsive)


        Technical Specifications
        3.6kW Single-Phase
        5kW Single-Phase
        17kW Three-Phase



        Max DC Input Power
        5.4 kW
        7.5 kW
        25.5 kW


        MPPT Voltage Range
        150-500 V
        150-500 V
        150-850 V


        Efficiency
        98.1%
        98.1%
        98.3%


        AC Output
        3.6 kW
        5.0 kW
        17 kW


        Battery Voltage
        51.2 V (LV)
        51.2 V
        400 V (HV)


        Max Battery Current
        80A / 50A
        100A
        50A


        Surge Rating
        5.4 kVA
        7.5 kVA
        25.5 kVA


        Certifications
        CE, VDE4105, G98/G99, NRS097, IEC62109
        CE, IEC62109, VDE0126, EN50549
        CE, VDE-AR-N4105, G99, IEC62109


        Protection
        IP65
        IP65
        IP65




Inverter

Soléa Inverter Models

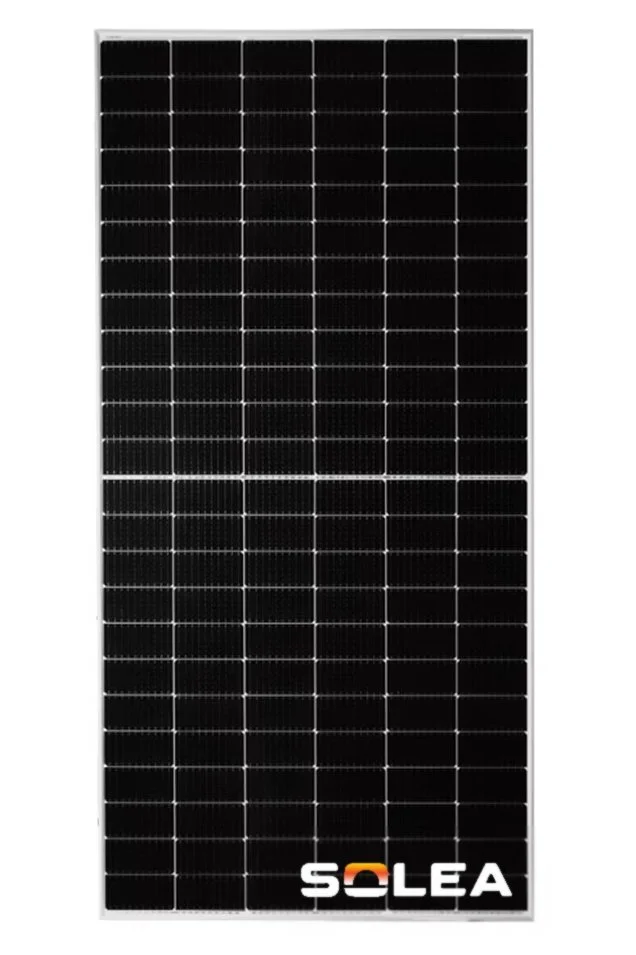

                        Soléa PV – STP405-C72/Pmh+ (405W)

3–4 kWp arrays

                            Max DC Input:

                        405 W

                            Optimum Voltage:

                        38.3 V

                            Module Efficiency:

                        20.9%

                            Optimum Current:

                        10.65 A

                            Open Current Voltage:

                        46.21 V

                            Short Circuit Current:

                        13.83 A

                            Temp. Range:

                        –40 °C to +85 °C

                            Dimensions:

                        2278×1134×30 mm

                            Weight:

                        32 kg (70.5 lbs)

Certifications:
                        CE
                        UL
                        IEC61215
                        IEC61730

                    Application: Moderate power output matches well with small residential applications such as Soléa Inverter – 3.6kW (Single-Phase).

Most Popular

                        Soléa PV – STP455-C72/Pmh+ (455W)

~4–6 kWp arrays

                             Max DC Input:

                        455 W

                            Optimum Voltage:

                        38.9 V

                            Module Efficiency:

                        21.1%

                            Optimum Current:

                        11.7 A

                            Open Current Voltage:

                        46.9 V

                            Short Circuit Current:

                        13.96 A

                            Temp. Range:

                        –40 °C to +85 °C

                            Dimensions:

                        2278×1134×30 mm

                            Weight:

                        32 kg (70.5 lbs)

Certifications:
                        CE
                        UL
                        IEC61215
                        IEC61730

                    Application: Medium capacity fits ideally within residential rooftop installations such as Soléa Inverter – 5kW (Single-Phase).

                        Soléa PV – STP555-C72/Pmh+ (555W)

15–20 kWp

                            Max DC Input:

                        555 W

                            Optimum Voltage:

                        42.24 V

                            Module Efficiency:

                        21.5%

                            Optimum Current:

                        13.14 A

                            Open Current Voltage:

                        50.07 V

                            Short Circuit Current:

                        14.07 A

                            Temp. Range:

                        –40 °C to +85 °C

                            Dimensions:

                        2278×1134×30 mm

                            Weight:

                        32 kg (70.5 lbs)

Certifications:
                        CE
                        UL
                        IEC61215
                        IEC61730

                    Application: High-capacity module complements large-scale or commercial rooftop applications such as Soléa Inverter – 17kW (Three-Phase).

PV Module Specification Table (Responsive Full Width)


          Technical Specifications
          STP405-C72/Pmh+
(405 W)
          STP455-C72/Pmh+
(455 W)
          STP555-C72/Pmh+
(555 W)



          Maximum Power
          405 W
          455 W
          555 W


          Optimum Voltage
          38.30 V
          38.90 V
          42.24 V


          Optimum Current
          10.65 A
          11.70 A
          13.14 A


          Open-Circuit Voltage
          46.21 V
          46.90 V
          50.07 V


          Short-Circuit Current
          13.83 A
          13.96 A
          14.07 A


          Module Efficiency
          20.90 %
          21.10 %
          21.50 %


          MPPT Voltage Range
          150–500 V
          150–500 V
          150–850 V


          Maximum System Voltage
          1500 V DC (IEC)
          1500 V DC (IEC)
          1500 V DC (IEC)


          Operating Module Temp.
          –40 °C to +85 °C
          –40 °C to +85 °C
          –40 °C to +85 °C


          Cell Type & Count
          Mono-Si 182 mm, 144 (6×24)
          Mono-Si 182 mm, 144 (6×24)
          Mono-Si 182 mm, 144 (6×24)


          Dimensions
          2278 × 1134 × 30 mm
          2278 × 1134 × 30 mm
          2278 × 1134 × 30 mm


          Weight
          32 kg (70.5 lbs)
          32 kg (70.5 lbs)
          32 kg (70.5 lbs)


          Front/Back Glass
          2.0 ± 0.2 mm semi-tempered
          2.0 ± 0.2 mm semi-tempered
          2.0 ± 0.2 mm semi-tempered


          Output Cables
          4.0 mm²; –350 mm / +160 mm
          4.0 mm²; –350 mm / +160 mm
          4.0 mm²; –350 mm / +160 mm


          Junction Box
          IP68 (3 bypass diodes)
          IP68 (3 bypass diodes)
          IP68 (3 bypass diodes)


          Connectors
          STP-XC4
          STP-XC4
          STP-XC4


          Max. Series Fuse Rating
          25 A
          25 A
          25 A


          Power Tolerance
          0 / + 5 W
          0 / + 5 W
          0 / + 5 W


          Bifaciality Factor (rear gain)
          (+70 ± 5 %)
          (+70 ± 5 %)
          (+70 ± 5 %)


          Frame
          Anodized aluminum alloy
          Anodized aluminum alloy
          Anodized aluminum alloy


          Packing
          36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg
          36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg
          36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg


          Temp. Coefficient of Pmax
          –0.34 %/°C
          –0.34 %/°C
          –0.34 %/°C


          Temp. Coefficient of Voc
          –0.26 %/°C
          –0.26 %/°C
          –0.26 %/°C


          Temp. Coefficient of Isc
          +0.05 %/°C
          +0.05 %/°C
          +0.05 %/°C


          Certifications
          IEC 61215, IEC 61730, CE, UL
          IEC 61215, IEC 61730, CE, UL
          IEC 61215, IEC 61730, CE, UL
