Power Your Future with

PV + Inverter Systems

Clean, reliable and cost-saving solar energy for your home & business.

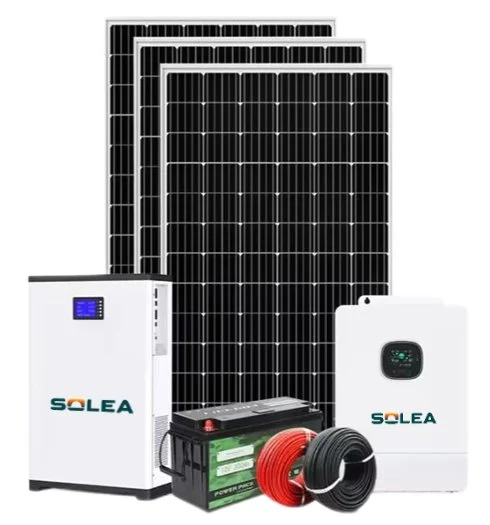

PV + Inverter Systems

Advanced hybrid inverters for seamless integration of PV and battery systems. Engineered for residential and commercial applications with smart energy management and high efficiency.

Button Group

Soléa Inverter Models

High-efficiency hybrid inverters for residential and commercial solar installations



Soléa Inverter – 3.6kWModel: Ares 3.6KL (Single-Phase)
3.6 kW
AC Output Power
Max DC Input
5.4 kW
MPPT Voltage
150-500 V
Efficiency
98.1%
Battery Voltage
51.2 V (LV)
 CE
 VDE4105
 G98/G99
 NRS097
 IEC62109

                        Application: Pair with PowerCool-WLV5000 or 10/15kWh stackable ESS. Ideal for 2–3kW PV arrays in residential rooftops.




Soléa Inverter – 5kWModel: Ares 5KL (Single-Phase)
5.0 kW
AC Output Power
Max DC Input
7.5 kW
MPPT Voltage
150-500 V
Efficiency
98.1%
Battery Voltage
51.2 V
 CE
 IEC62109
 VDE0126
 EN50549

                        Application: Ideal for 10–15kWh ESS stacks. Works in on-grid or hybrid modes with backup power capability.




Soléa Inverter – 17kWModel: Ares 17KH3 (Three-Phase)
17 kW
AC Output Power
Max DC Input
25.5 kW
MPPT Voltage
150-850 V
Efficiency
98.3%
Battery Voltage
400 V (HV)
 CE
 VDE-AR-N4105
 G99
 IEC62109

                        Application: Compatible with high-voltage ESS (30–36kWh). Suited for villas, farms, and commercial rooftops with PowerCool-HV systems.


Soléa Inverter Specifications
      Soléa Inverter Specifications

Technical Specifications


              Technical Specifications
              3.6kW Single-Phase
              5kW Single-Phase
              17kW Three-Phase



              Max DC Input Power
              5.4 kW
              7.5 kW
              25.5 kW


              MPPT Voltage Range
              150-500 V
              150-500 V
              150-850 V


              Efficiency
              98.1%
              98.1%
              98.3%


              AC Output
              3.6 kW
              5.0 kW
              17 kW


              Battery Voltage
              51.2 V (LV)
              51.2 V
              400 V (HV)


              Max Battery Current
              80A / 50A
              100A
              50A


              Surge Rating
              5.4 kVA
              7.5 kVA
              25.5 kVA


              Certifications
              CE, VDE4105, G98/G99, NRS097, IEC62109
              CE, IEC62109, VDE0126, EN50549
              CE, VDE-AR-N4105, G99, IEC62109


              Protection
              IP65
              IP65
              IP65





Soléa PV Modules

High-efficiency monocrystalline solar panels for residential and commercial installations

Soléa PV Modules


Soléa PV – STP405Model: C72/Pmh+ (405W)
405 W
Peak Power Output
Max Power
405 W
Optimum Voltage
38.3 V
Efficiency
20.9%
Optimum Current
10.65 A
 CE
 UL
 IEC61215
 IEC61730

                        Application: Moderate power output matches well with small residential applications such as Soléa Inverter – 3.6kW (Single-Phase).




Soléa PV – STP455Model: C72/Pmh+ (455W)
455 W
Peak Power Output
Max Power
455 W
Optimum Voltage
38.9 V
Efficiency
21.1%
Optimum Current
11.7 A
 CE
 UL
 IEC61215
 IEC61730

                        Application: Medium capacity fits ideally within residential rooftop installations such as Soléa Inverter – 5kW (Single-Phase).




Soléa PV – STP555Model: C72/Pmh+ (555W)
555 W
Peak Power Output
Max Power
555 W
Optimum Voltage
42.24 V
Efficiency
21.5%
Optimum Current
13.14 A
 CE
 UL
 IEC61215
 IEC61730

                        Application: High-capacity module complements large-scale or commercial rooftop applications such as Soléa Inverter – 17kW (Three-Phase).


      PV Module Specifications

Technical Specifications


              Technical Specifications
              STP405-C72/Pmh+
(405 W)
              STP455-C72/Pmh+
(455 W)
              STP555-C72/Pmh+
(555 W)



              Maximum Power
              405 W
              455 W
              555 W


              Optimum Voltage
              38.30 V
              38.90 V
              42.24 V


              Optimum Current
              10.65 A
              11.70 A
              13.14 A


              Open-Circuit Voltage
              46.21 V
              46.90 V
              50.07 V


              Short-Circuit Current
              13.83 A
              13.96 A
              14.07 A


              Module Efficiency
              20.90 %
              21.10 %
              21.50 %


              MPPT Voltage Range
              150–500 V
              150–500 V
              150–850 V


              Maximum System Voltage
              1500 V DC (IEC)
              1500 V DC (IEC)
              1500 V DC (IEC)


              Operating Module Temp.
              –40 °C to +85 °C
              –40 °C to +85 °C
              –40 °C to +85 °C


              Cell Type & Count
              Mono-Si 182 mm, 144 (6×24)
              Mono-Si 182 mm, 144 (6×24)
              Mono-Si 182 mm, 144 (6×24)


              Dimensions
              2278 × 1134 × 30 mm
              2278 × 1134 × 30 mm
              2278 × 1134 × 30 mm


              Weight
              32 kg (70.5 lbs)
              32 kg (70.5 lbs)
              32 kg (70.5 lbs)


              Front/Back Glass
              2.0 ± 0.2 mm semi-tempered
              2.0 ± 0.2 mm semi-tempered
              2.0 ± 0.2 mm semi-tempered


              Output Cables
              4.0 mm²; –350 mm / +160 mm
              4.0 mm²; –350 mm / +160 mm
              4.0 mm²; –350 mm / +160 mm


              Junction Box
              IP68 (3 bypass diodes)
              IP68 (3 bypass diodes)
              IP68 (3 bypass diodes)


              Connectors
              STP-XC4
              STP-XC4
              STP-XC4


              Max. Series Fuse Rating
              25 A
              25 A
              25 A


              Power Tolerance
              0 / + 5 W
              0 / + 5 W
              0 / + 5 W


              Bifaciality Factor (rear gain)
              (+70 ± 5 %)
              (+70 ± 5 %)
              (+70 ± 5 %)


              Frame
              Anodized aluminum alloy
              Anodized aluminum alloy
              Anodized aluminum alloy


              Packing
              36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg
              36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg
              36 pcs/pallet; 720 pcs/40'HC
2310×1120×1255 mm; 1202 kg


              Temp. Coefficient of Pmax
              –0.34 %/°C
              –0.34 %/°C
              –0.34 %/°C


              Temp. Coefficient of Voc
              –0.26 %/°C
              –0.26 %/°C
              –0.26 %/°C


              Temp. Coefficient of Isc
              +0.05 %/°C
              +0.05 %/°C
              +0.05 %/°C


              Certifications
              IEC 61215, IEC 61730, CE, UL
              IEC 61215, IEC 61730, CE, UL
              IEC 61215, IEC 61730, CE, UL
